Silo cement level indicator ILTA0 24/48V rotary paddle level switch

FOB Reference Price:Get Latest Price
$2.00 - $10.00 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Valves
Place of Origin:
Zhejiang, China
Model Number:
AKMK
Brand Name:
GOGO
Protection class:
IP65
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
CARTONS
Port
NINGBO OR SHANGHAI
Lead Time :
2-7DAYS

Silo cement level indicator ILTA0 24/48V rotary paddle level switch





ILTA0 This section for the 24V / 48V AC resistance type rotary level meter, for the silo alarm.

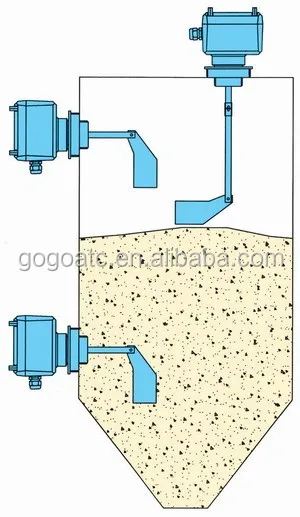

Installation location: the upper part of the silo and the lower part of the silo;
The upper part of the material to play anti-overflow spill, the lower part of the role to prevent the lack of material.
Waim can be generic.


Applications
Level indicators are widely used in chemical, plastics, cement, pharmaceutical, feed, food and other industries.
Technical parameters of product operation
Power: 1.2W, 3.0W, 4.0W
Lead wire: 3 × 1.5mm2, 6 × 0.5mm2
Cable connector: M20 × 1.5 plastic cable connector
Protection class: IP65
Mounting connection: Standard thread G11 / 2 "(DN40) and G21 / 2" (DN65), (two threads on one level switch are available for installation)
               Non-standard threaded thread G3 / 4 "or flange
Installation thread material: standard nylon
                     Explosion - proof aluminum alloy
Rotation speed of pulp blade: 1R.P.M.
Container pressure: max. 0.8 bar
Ambient temperature: -20 ℃ ~ +70 ℃, special high temperature up to 200 ℃
Contact capacity: 2A / 250V AC, 3A / 250V AC, 10A / 250V AC
Shell material: aluminum alloy
Transmission rod material: stainless steel 304
Paddle material: stainless steel 304

Transmission rod options: transmission rods can be lengthened to 1000 mm, the standard extension rod 500 mm material and 1000 mm longer optional
 If the material is above the paddle, the paddle of the ILT-type bin level indicator will not turn. Once the material level drops below the rotary range of the paddle, the rotary motion starts and drives the other parts of the indicator. Top or side mounted indicators are typically used for materials with densities ranging from 0.5 t / m3 to 2 t / m3
