Water dispenser small micro miniature solenoid valve for water purifier

FOB Reference Price:Get Latest Price
  • >=100 Pieces
Support Sea freight
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Model Number:
Control mode::
normally close
Port Size::
1/8" 1/4"
0-100 °C
Working type:
Direct action 2/2
Valve body material:
Max pressure:
Working Pressure:
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Lead Time :

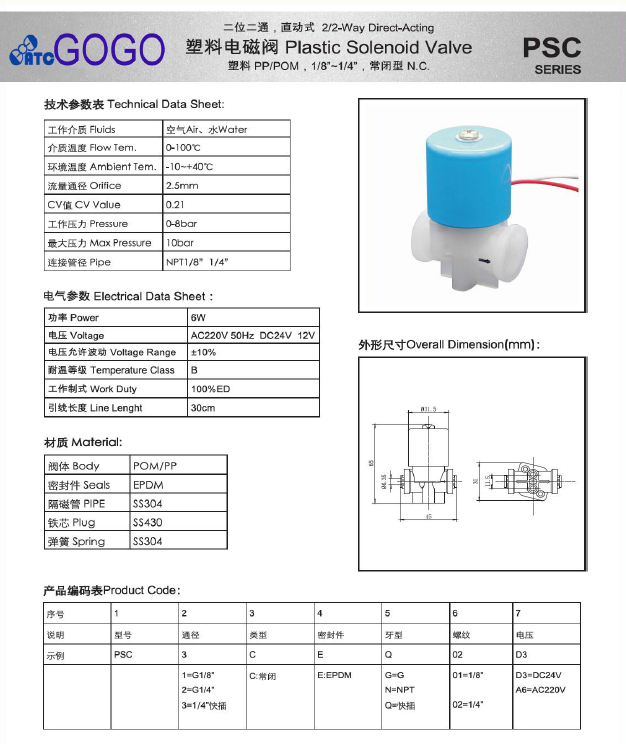

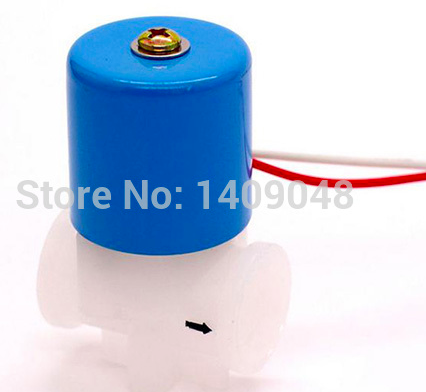

Water dispenser small micro miniature solenoid valve for water purifier



Pattern: Two-port two-position
Principium: directly acting type
Control mode: normally close
Valve body: Plastic POM
Medium temperature: 0~100°C
Working pressure: 0~8bar
Max pressure: 10bar








Joint Pipe Bore: 1/2” ,1” (or customized)
Max pressure: 1.2 MPa
Working pressure: 0.0-1.2 MPa
Temperature range: 0 ℃ ~ 100℃
Sealing material: silicon rubber
Power source: AC220V, DC24V (other voltage can be)

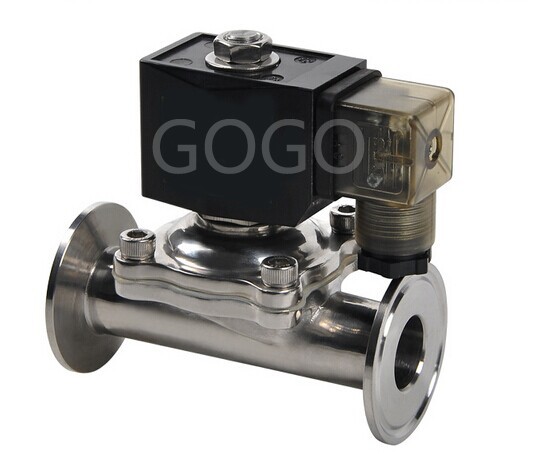

Mode of action: Double diaphragm type
Control mode: normally closed, normally open
Power allows volatility: ±10%
Body material: Stainless steel 316 or Plastic
Working medium: water, steam, wine, solution.

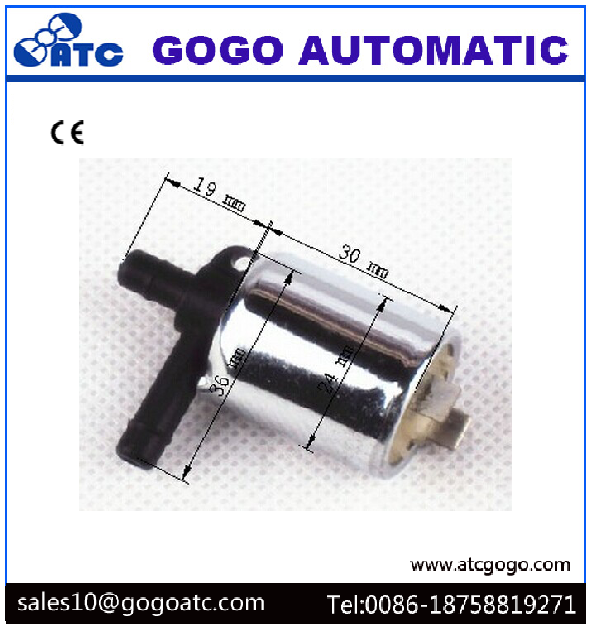

Pattern: Two-port two-position

Control mode: normally closed


Voltage: 12VDC

Temperature: 0~80℃

Working medium: air/water

Valve body:  Hygienic grade nylon material and Metal casing outside

Seat leakage: NO LEAKAGE



brass valve.jpg






Company Information

Founded in July,2014,Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality , potential and comprehensive strength .The company is located in the Zhejiang Ningbo Science &Technology zone ,a unique place with beautiful scenery and gifts of nature.
On the basis of technology development , the company has taken in a group of experienced personnels who are talented in senior management ,marketing and skills of producing .In the company ,great attention is paid to basic management ,stable quality ,continuously improving pre-sale services,sale and after-sale services,and enhancing the market competitiveness of our products.
Main products of our company : automatic parts, pneumatic solenoid valve , air water solenoid valve, hydraulic valves, gear piston or vane pumps , fittings connectors , temperature pressure transmitter , temperature controller , PLC , DCS parts , hardware stainless steel or brass or plastic parts , etc.





Warranty of solenoid valve

1 years warranty


Maintenance instructions:
1. attention to check the use of components, in the transport process is damaged, and then install the use of.
2. When installing, please note that the gas flow direction and the takeover are correct.
3. when using, please strictly comply with the technical requirements, such as the operating voltage, operating frequency, working pressure, the use of temperature, the whole machine debugging, it is recommended to use a manual device debugging, and then through power debugging.
4. Please pay attention to dust, it is recommended to install the exhaust port or muffler muffler throttle.
5. When connecting pipe, pay attention to only release the strap around the joint may not exceed the end face of the tooth, and pay attention to the elimination of pipe fittings, metal particles inside the pipe, dust and oil, etc
